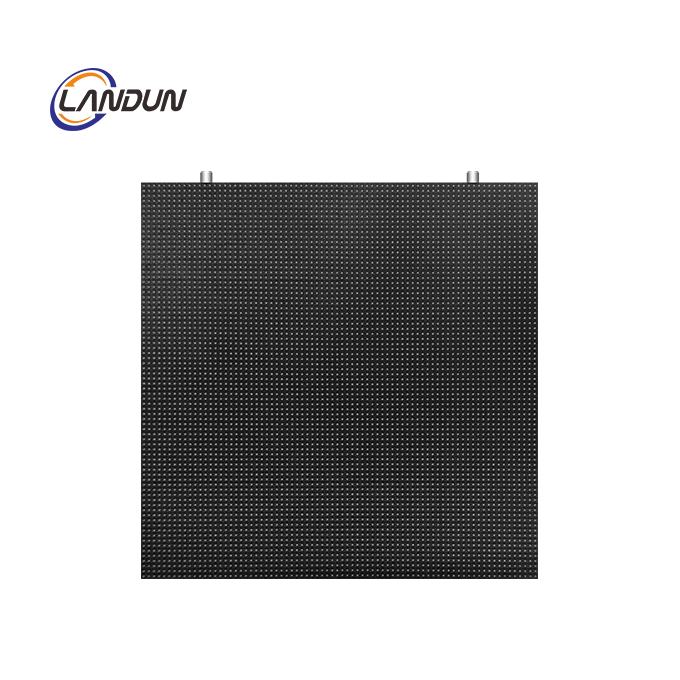

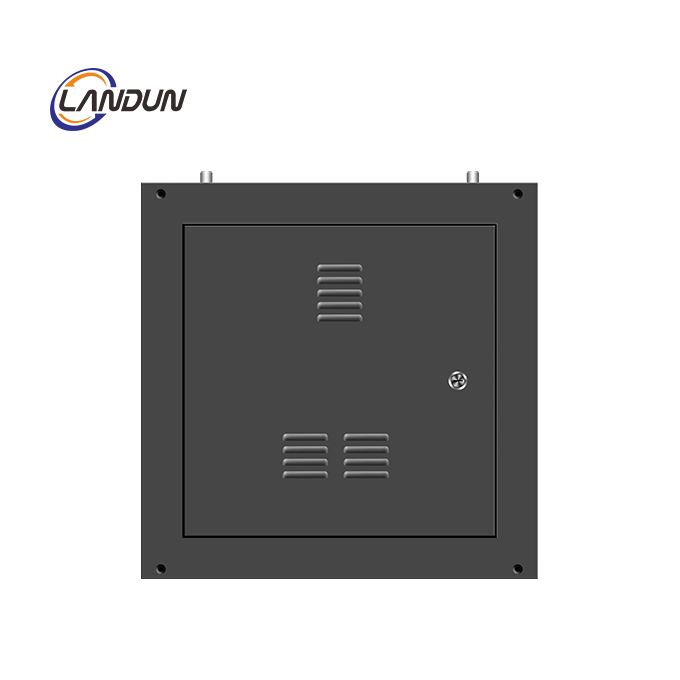

Outdoor LED Display

Parameter

  Model  P5  P6  P8
  Pixel pitch  5mm  6mm  8mm
  Panel resolution  128x128  108x108  80x80
  Led quantity /panel  40000dot/m²  28437dot/m²  15625dot/m²
  Led encapsulation  SMD 2727  SMD 2727  SMD 2727
  Panel dimension  640x640x82mm  640x640x82mm  640x640x82mm
  Brightness  ≧5500cd/m²  ≧6000cd/m²  ≧5800cd/m²
  Contrast  3000:1  3000:1  3000:1
  Panel weight  12.5Kg  12.5Kg  12.5Kg
  Grey scale  12bit  12bit  12bit
  Refresh rate  1920Hz  1920Hz  1920Hz
  Max power consumption  623W/㎡   (255W)  516W/㎡   (212W)  533W/㎡   (219W)
  Average power consumption  311W/㎡   (128W)  258W/㎡   (106W)  266W/㎡   (109W)
  Pixel configuration  3-IN-1 SMD
  AC Operating Voltage  AC 110-240V  50/60Hz
  Operating Temp/Humidity  -20~50/10~85% RH
  Viewing angle  160°/120°
  IP rating  IP65(Front)
  Tenure life of lamp  100,000 Hours
  Certificates  ISO9001、RoHS、CE、FCC、CECP、CCC
