Features:

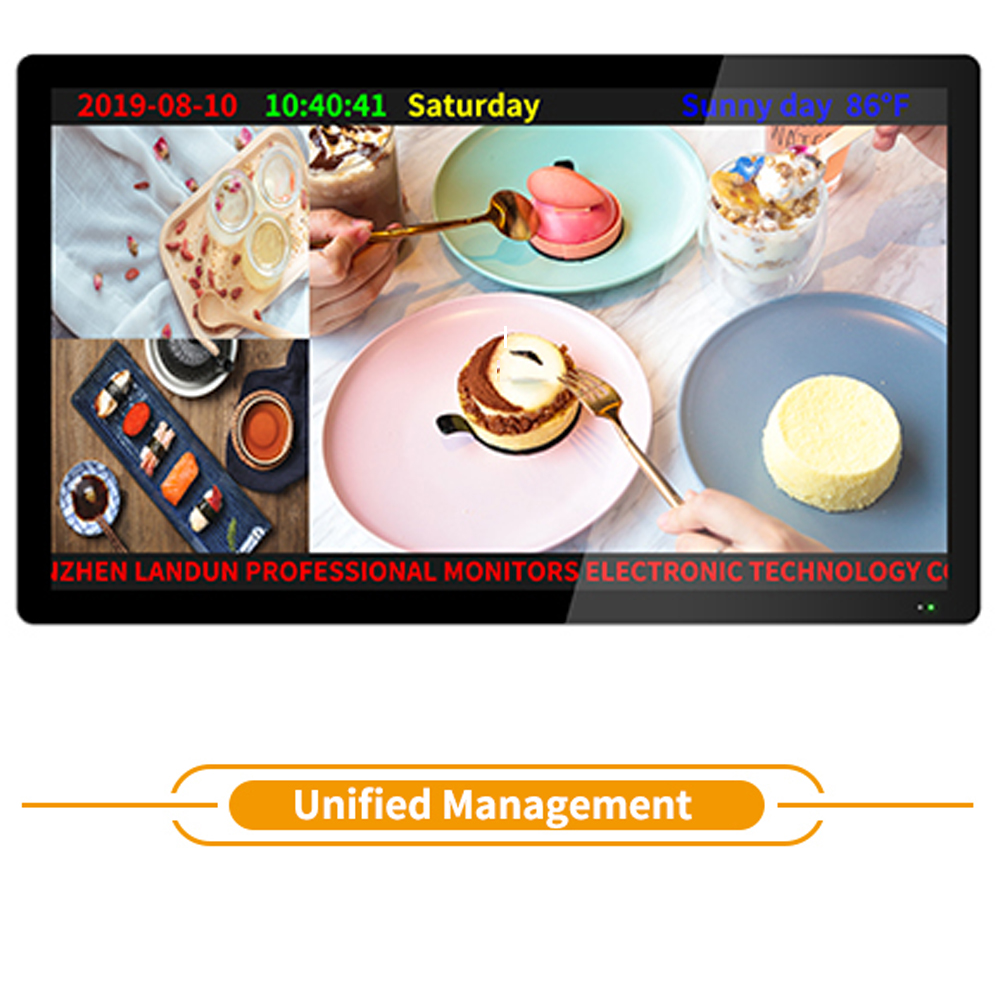

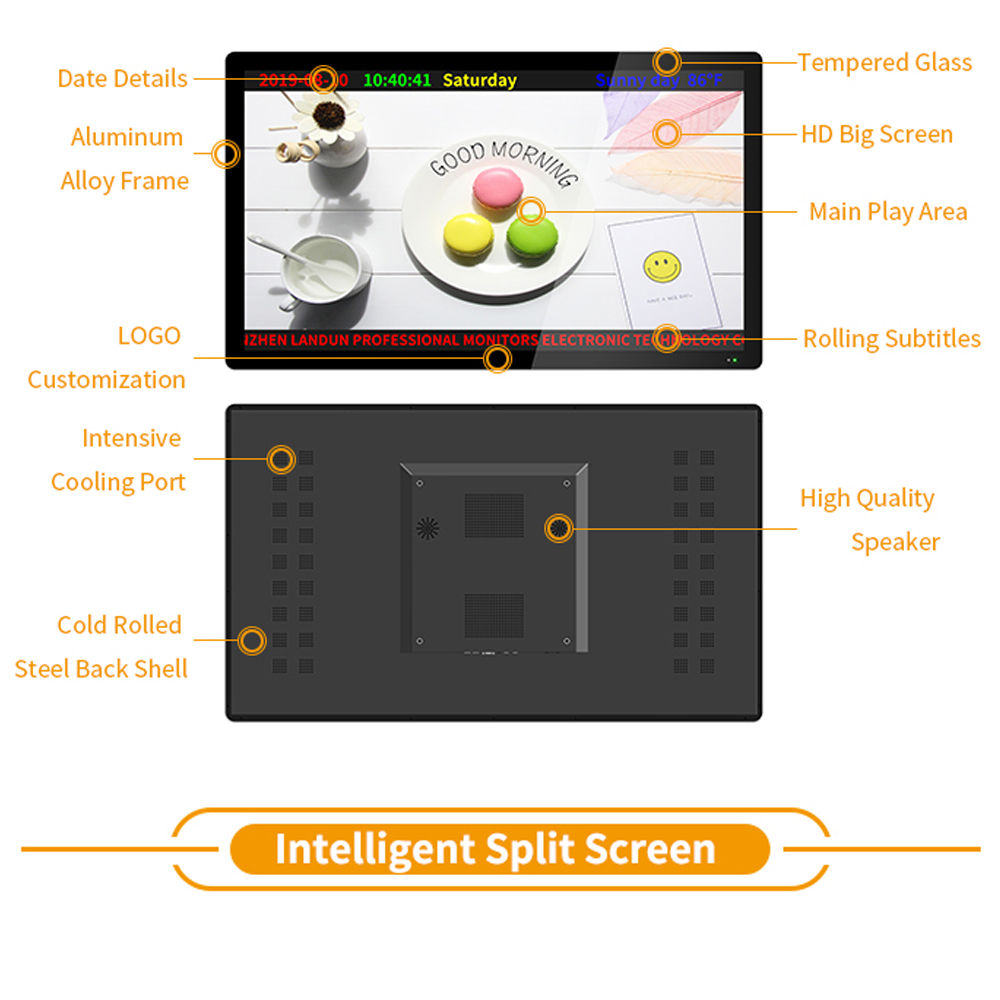

▪ Various and flexible interface layout, split screen and full screen are available, different areas display different contents;
▪ Support loop, timing, insert, gasket and other playback modes to achieve manage the playback time, content and location flexibly;
▪ Focus on control and management to achieve display different contents at different time and locations;
▪ Support video, image, audio, Word, Excel, PPT, PDF and other common documents;

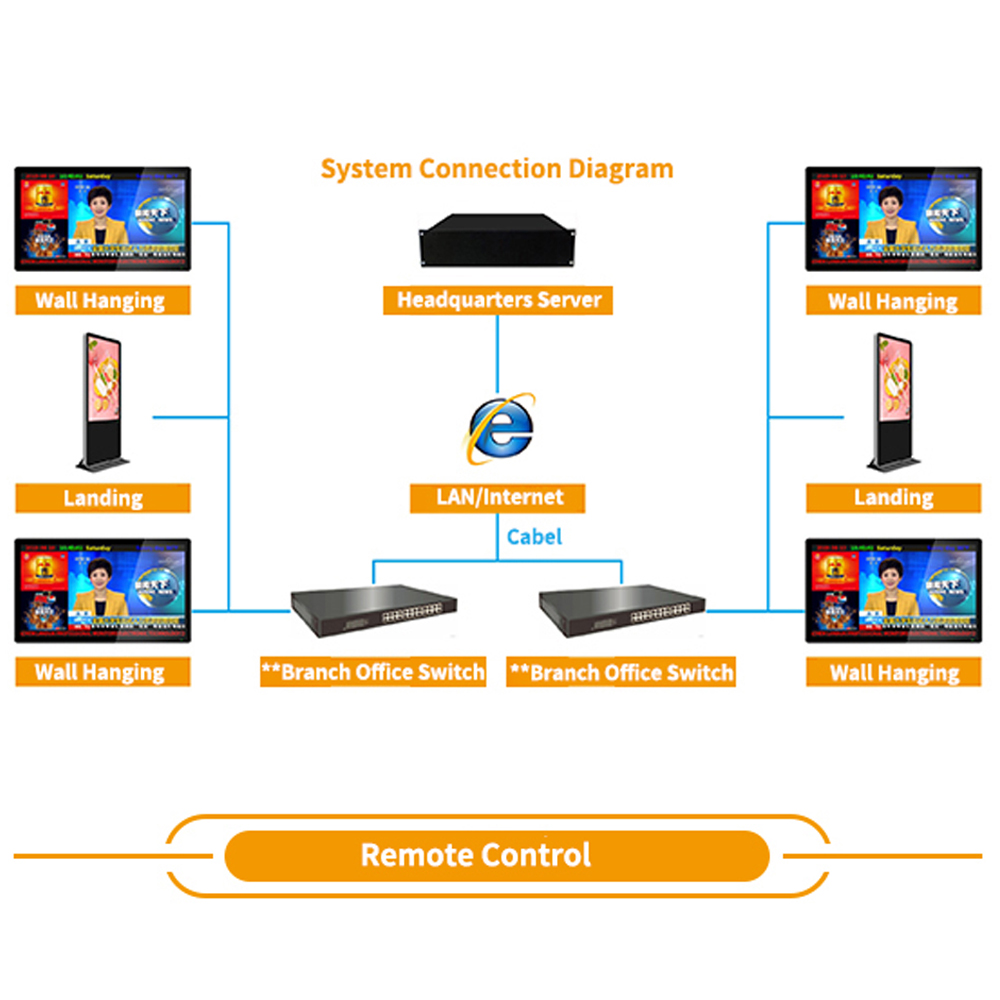

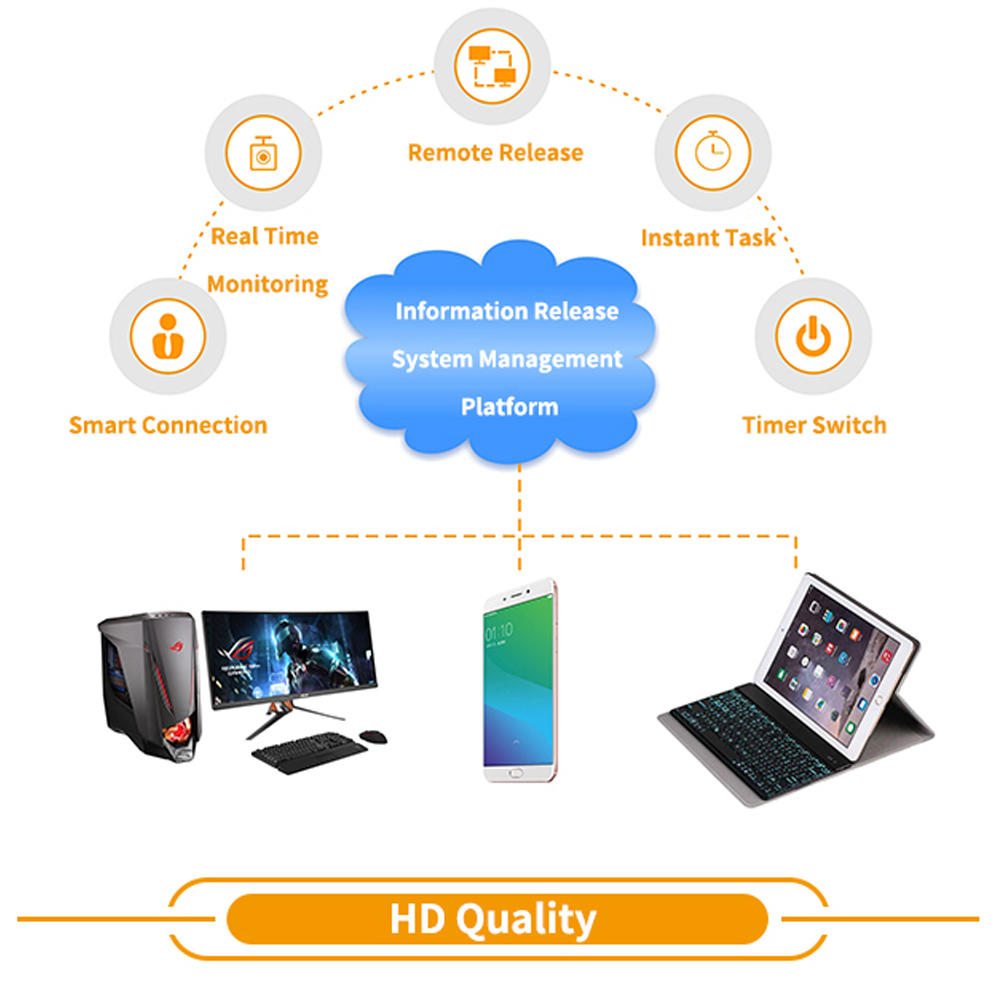

▪ Realize terminal remote monitoring (terminal working status, playing information, downloading monitoring), terminal remote management(remote upgrade, restart, shutdown, volume adjustment, real-time screenshot);
▪ The management platform supports multi-language environment, including simplified Chinese, traditional Chinese, English, Japanese etc;
▪ Support customization;
Parameter
Model | LD-G185A | |
Screen Parameter | ||
Type | Horizontal screen | Vertical screen |
Size | 18.5Inch | 18.5Inch |
Display area | 409.8*230.4mm | 230.4*409.8mm |
Resolution | 1366*768 | 768*1366 |
Proportion | 16:9 | 9:16 |
Brightness | 450cd/㎡ | 450cd/㎡ |
Color | 16.7M | 16.7M |
Contrast Ratio | 1000:1 | 1000:1 |
Viewing angel | 75/85/85/85(up/down/left/right) | 85/85/75/85(up/down/left/right) |
System Configuration | ||

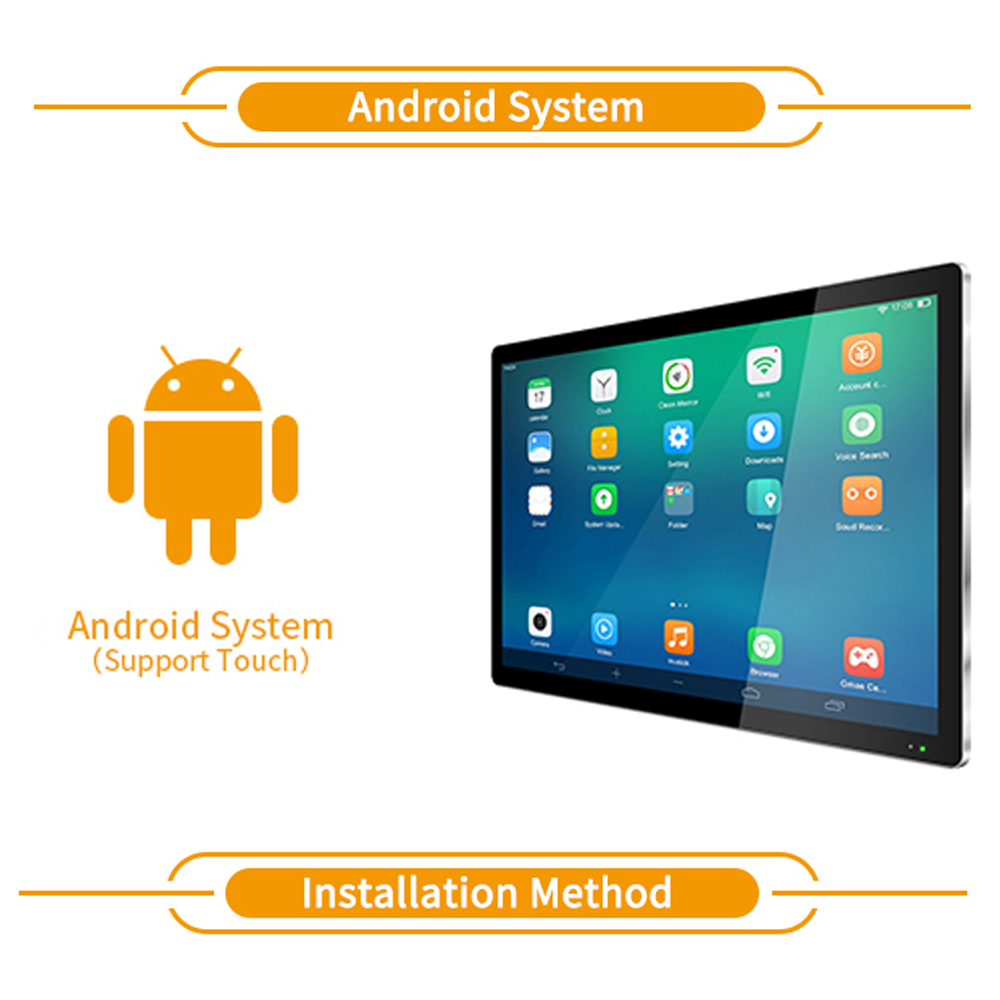

Operation System | Android 4.4.4 | |
Main chip | (MSTAR + ARM Cortex A7 (Four cores) + MALI 450 MP2 GPU) | |
Memory | 512M | |
Rom | Board 8GB | |
Extended memory | TF card | |
External Interface | HDMI Input、VGA Input、RJ45、USB*2 | |

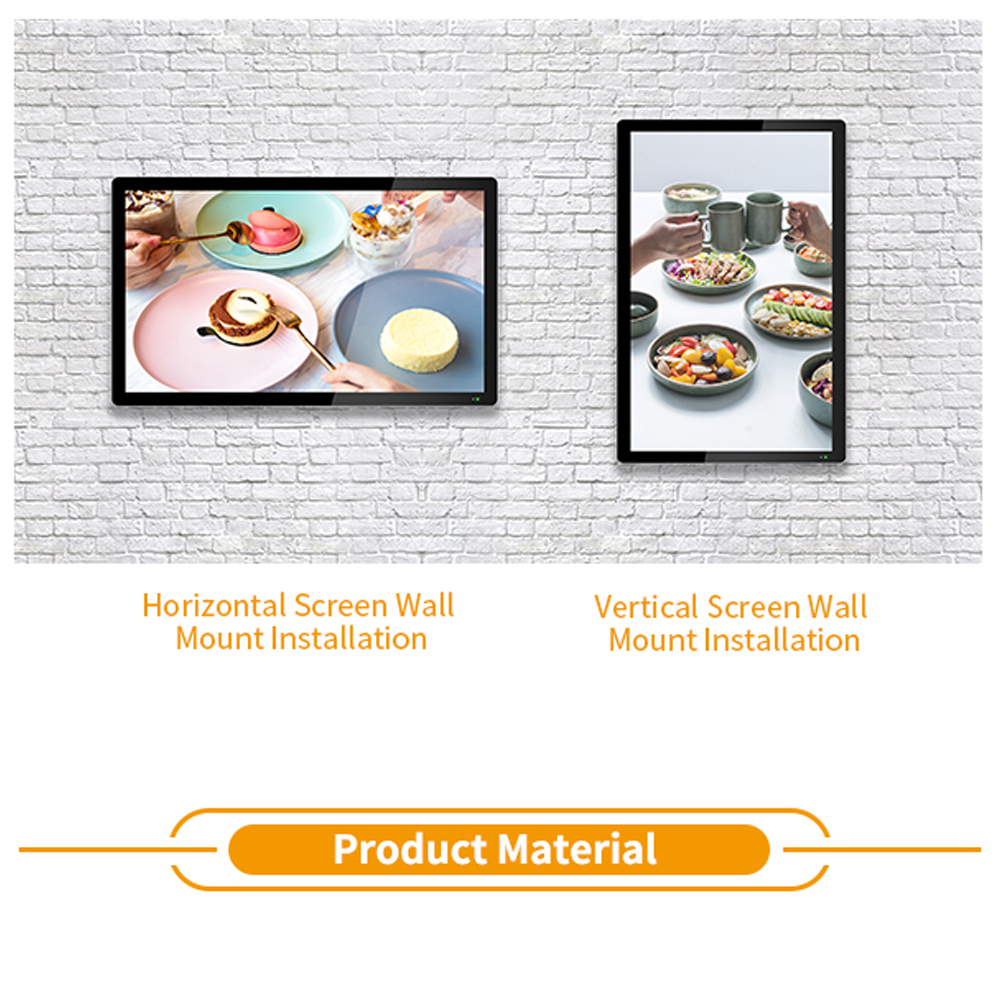

Installation | Wall mount、Floor mount、Base mount、Hanging mount | |
Dimension | 466*286.4*42.2mm (contain Wall hanging) | |
Weight | 6.5Kg | |
Input Voltage | AC 110V-240V 50/60Hz | |
Power | ≦45W |
